As business communication moves beyond traditional on-premise systems, PBX trunk line continues to play a critical role in managing inbound and outbound voice traffic. However, in Cloud PBX and SIP-based environments, trunk lines are no longer just about basic connectivity – they are about reliability, scalability, and uptime. This is why modern Cloud PBX platforms like HaPBX design PBX trunk architectures with High Availability at the center, ensuring business communications stay online as teams grow and call volumes increase.
PBX Trunk Line Explained: Definition, Role, and Common Types
What Is a PBX Trunk Line?
A PBX trunk line is the communication link that connects a PBX system to the outside world – either the public switched telephone network (PSTN) or VoIP carriers.
Instead of assigning a separate external line to each user, businesses use trunk lines to share external calling capacity across multiple internal extensions, optimizing both cost and efficiency.
In practical terms, trunk lines act as the gateway for all inbound and outbound calls, allowing a PBX system to manage external communication centrally.
PBX Trunk Line vs Extension
An extension is an internal endpoint used by individual employees for internal and external calls, while a PBX trunk line provides access to external networks.
Extensions handle who is calling, whereas trunk lines determine how many calls can go in or out at the same time.
This creates a one-to-many relationship: a single trunk line (or trunk group) can serve multiple extensions, as long as concurrent call limits are not exceeded. This shared model is what makes PBX systems scalable and cost-effective.
Types of PBX Trunk Lines
PBX trunk lines can be implemented using different technologies:
- Analog Trunks (PSTN): Traditional phone lines, simple but limited in capacity and scalability.
- Digital Trunks (ISDN / E1 / PRI): Provide multiple voice channels over a single circuit, commonly used in legacy enterprise systems.
- SIP Trunks: Use IP networks to connect PBX systems to VoIP carriers, offering flexibility, scalability, and lower operational costs.
Today, SIP trunking has become the modern standard, especially for Cloud PBX environments, because it removes physical constraints, supports rapid scaling, and integrates seamlessly with internet-based PBX architectures. This is the foundation of modern platforms like HaPBX, which utilize SIP to deliver trunking that is not limited by physical wires or geographic location.
PBX Trunk Line in Cloud PBX: SIP Trunking, Call Flow, and Capacity
PBX Trunk Line vs SIP Trunking: Concept vs Implementation
- A PBX trunk line is a general concept that describes how a PBX system connects to external telephone networks.
- SIP trunking, on the other hand, is a specific technology that implements this connection using IP networks and the SIP protocol.
In Cloud PBX environments, trunk lines are almost always implemented via SIP trunking. This is because cloud-based systems do not rely on physical circuits like PSTN or E1, and instead use internet-based connectivity to deliver flexibility, scalability, and global reach.
What Is SIP Trunking? The Complete Guide to Enterprise Connectivity (2026)
How Calls Flow Through a Cloud PBX Trunk Line
For inbound calls, the flow is straightforward:
External caller → SIP trunk → Cloud PBX → extension.
When a customer dials a business number, the call first reaches the SIP trunk provided by the carrier. The Cloud PBX then applies call-handling rules such as IVR menus, ring groups, or call queues before delivering the call to the appropriate extension or team.
For outbound calls, the process works in reverse:
Extension → Cloud PBX → SIP trunk → external network.
When an employee places a call, the Cloud PBX checks permissions, routing rules, and available trunk capacity, then sends the call through the SIP trunk to the public network or VoIP carrier.
From a business perspective, this centralized call flow ensures consistent call handling, location independence, and easier management. Whether users are in the office, working remotely, or operating across multiple regions, all calls follow the same controlled path through the Cloud PBX and its trunk lines.
Concurrent Calls vs Number of Users
PBX trunk capacity is measured by concurrent calls, not by the total number of users or extensions.
This is because not all users make or receive calls at the same time.
For example, a company with 40 employees may only need 8-10 concurrent calls if typical calling activity is moderate. By sizing trunk capacity around actual call concurrency, businesses can avoid overpaying while still ensuring smooth call operations during peak hours.
How Many PBX Trunk Lines Does a Business Need?
Key Factors That Affect Trunk Capacity
The number of PBX trunk lines a business needs depends on call behavior, not just headcount. The most important factors include:
- Number of active callers: How many employees are likely to be on calls at the same time, rather than total users or extensions.
- Peak call times: Call volume often spikes during specific hours (sales campaigns, customer support shifts), which should be considered when sizing trunk capacity.
- Business type: A standard office, a sales-driven team, and a call center all generate very different call patterns and concurrency levels.
Planning trunk capacity around these factors helps avoid call congestion while keeping costs under control.
Real-World Capacity Examples
To make trunk sizing more practical, businesses often use concurrent call ratios based on real usage patterns:
Small office (general business use):
- Typically requires 15-25% concurrent calls compared to total users.
- Example: 20 employees → 3-5 concurrent calls.
Sales team (outbound-focused):
- Higher calling intensity, often 40-60% concurrency.
- Example: 15 sales agents → 6-9 concurrent calls.
Call center or customer support:
- Near-continuous calling, usually 80-100% concurrency.
- Example: 30 agents → 24-30 concurrent calls.
These ratios provide a reliable starting point for estimating trunk capacity, which can then be adjusted as call volume grows or business needs change.

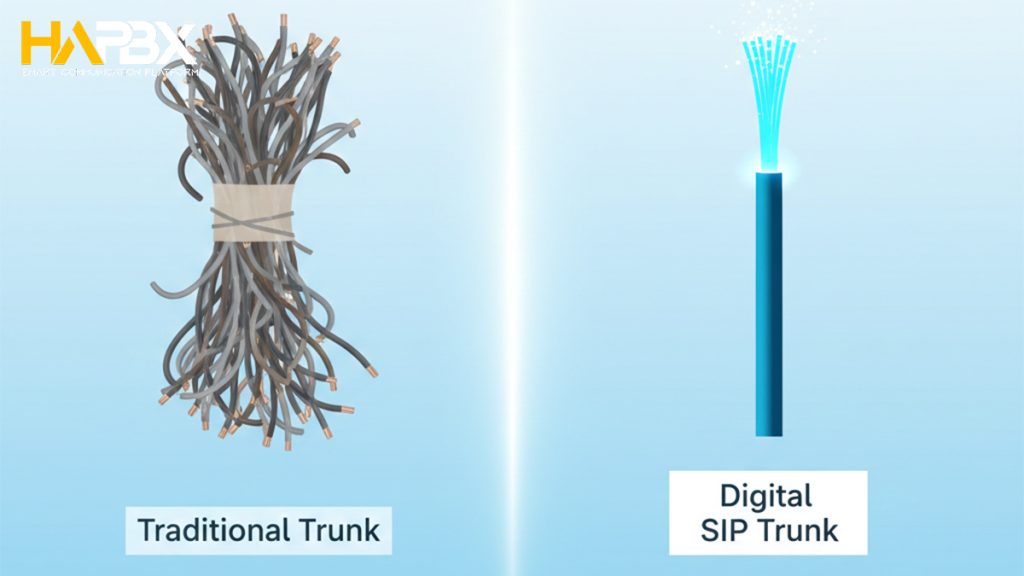

PBX Trunk Line technology is much more streamlined and powerful than traditional copper wiring
PBX Trunk Line Reliability: Why High Availability Matters
Cloud PBX Without High Availability: What Can Go Wrong?
In a single-server Cloud PBX setup, the entire system – including call control and trunk connectivity – relies on one instance. This creates a single point of failure.
If that server experiences an outage, overload, or network disruption, both inbound and outbound calls are immediately affected.
In practice, this means incoming callers may hear busy tones or unreachable messages, while active outbound calls can drop mid-conversation. During traffic spikes, limited resources can also cause call congestion, even if trunk capacity appears sufficient on paper.
Cloud PBX With High Availability: How It Works
A High Availability (HA) Cloud PBX is designed to eliminate single points of failure by distributing workloads across multiple components.
Instead of one server, the PBX runs on a cluster-based architecture, where multiple nodes operate in parallel. Key HA elements include:
- Cluster-based PBX architecture: Multiple PBX nodes share call processing, so if one node fails, others continue handling calls.
- Redundant SIP trunks: Calls can be routed through alternative carriers or gateways if one trunk becomes unavailable.
- Automatic failover and load balancing: Traffic is dynamically redistributed to healthy nodes and trunks without manual intervention.
As a result, calls remain connected – even during infrastructure failures – ensuring continuous availability and consistent customer experience, which is critical for sales teams, customer support, and business-critical communications.
High Availability vs Non-HA: Side-by-Side Comparison
| Aspect | Without High Availability | With High Availability |
| Architecture | Single PBX server | Cluster-based PBX with redundancy |
| Downtime Risk | High due to single point of failure | Minimal with automatic failover |
| Call Continuity | Calls drop during outages or overloads | Calls continue seamlessly |
| Business-Critical Use | Limited, suitable for small or test setup | Ideal for sales, support, and growth |
For growing businesses, communication downtime is no longer acceptable. High Availability transforms PBX trunk lines from a basic connectivity layer into a resilient, always-on communication foundation.
How HaPBX Delivers High-Availability PBX Trunk Lines
Dedicated Instance Architecture
HaPBX stands out by operating on a Dedicated Instance infrastructure, meaning each customer’s Cloud PBX environment runs in its own isolated virtual space rather than on a shared multi-tenant platform.
This structure eliminates the “noisy neighbour” problem where other tenants can affect performance or reliability, so businesses benefit from predictable stability and performance even under heavy load or peak traffic periods.
Global Cluster Infrastructure
HaPBX is built on a globally distributed cloud cluster, with services replicated across multiple nodes and data centers.
This architecture minimizes regional single points of failure and supports resilience and low latency, ensuring calls and trunk connections remain stable even if one server or location experiences issues. As a result, businesses enjoy consistent call quality and uptime regardless of geographic scale.
Multi-SIP Trunk Redundancy
To keep communications flowing, HaPBX uses multiple SIP trunks across redundant routes and carriers.
If one SIP pathway becomes degraded or fails, calls are automatically rerouted through alternative trunks. This eliminates the risk of service interruption due to a single trunk failure, delivering near-zero downtime for both inbound and outbound calling.
Built for Business Continuity
High Availability is not a “nice-to-have” add-on in HaPBX – it’s the core design principle.
From isolated instances to clustered infrastructure and redundant SIP trunk paths, every element is engineered to maximize uptime, reliability, and security.
This focus allows businesses to maintain mission-critical communication without worrying about infrastructure failure, empowering teams to focus on growth rather than system maintenance.
HAPBX – The Premier High Available Private Branch Exchange (Cloud PBX) for Enterprise Communication
PBX Trunk Line FAQs
Is a PBX trunk line the same as SIP trunking?
Not exactly. PBX trunk line is a general concept that refers to how a PBX connects to external phone networks, while SIP trunking is a specific technology used to implement trunk lines over IP networks. In modern Cloud PBX systems, trunk lines are almost always delivered via SIP.
How many trunk lines do I need?
The answer depends on concurrent calls, not total users. Most businesses only need trunk capacity for the number of calls happening at the same time.
Is High Availability worth the cost?
For business-critical communication, High Availability (HA) is absolutely worth the cost. Even short outages can lead to lost revenue, missed customer calls, and damaged trust. HA reduces these risks by ensuring calls continue during failures, making it a smart investment for growing businesses.
Conclusion: PBX Trunk Line, High Availability, and the Foundation of Business-Critical Communication
A PBX trunk line is no longer just a technical connection to the outside world – it is a business lifeline. In modern Cloud PBX environments, trunk lines determine whether customer calls get through, sales conversations stay connected, and support teams remain reachable during peak hours or unexpected failures. As call volumes grow, High Availability (HA) becomes the defining factor that separates basic connectivity from truly reliable business communications.
This is where HaPBX stands apart. By designing PBX trunk lines around Dedicated Instance infrastructure, global cluster architecture, and multi-SIP trunk redundancy, HaPBX treats High Availability not as an optional upgrade, but as a core principle. The result is a Cloud PBX platform built to stay online, protect call continuity, and support businesses that cannot afford downtime.
If your organization depends on voice communication for revenue, customer trust, or daily operations, now is the right time to evaluate your current PBX trunk architecture. Consider whether it is truly designed for High Availability – and whether it can scale safely as your business grows. Exploring an HA-first Cloud PBX approach with HaPBX is a practical step toward long-term reliability and operational confidence.
